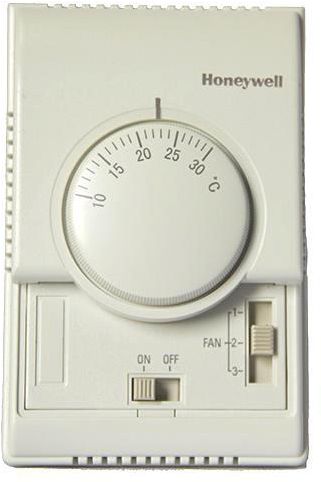

Honeywell Thermostat Manual T6373A1108

Brand : Honeywell

Color : White

Compatible With : Air Conditioners & Coolers

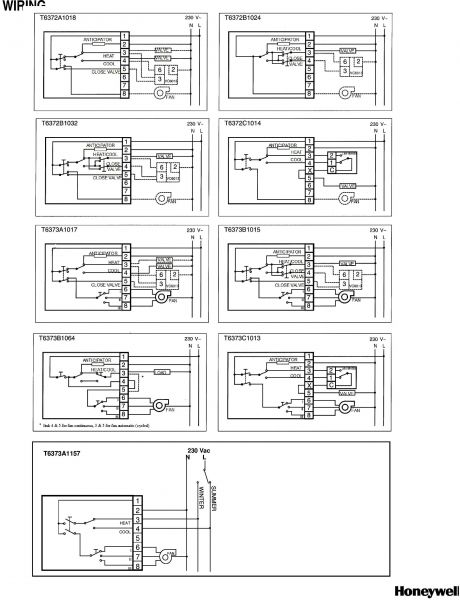

The T6373A1108 are designed to control the valve, or the valve and the fan in 2-pipe fan-coil applications. The thermostat operates an on/off valve to provide control at the desired set point temperature. The fan can also be controlled from the thermostat. In some cases it is wired to
run continuously, and can be switched off with the system ON/OFF switch, while
with other models there is a choice of running the fan continuously, or cycling

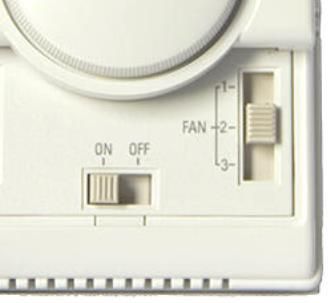

it with the thermostat. Versions are available with a manual 3-speed fan
switch, and with a system on-off switch. Heat/cool changeover operation is also
possible on some versions. This function can be accomplished either by a
manually operated heat/ cool switch on the front of the thermostat or in some
versions automatically by the use of a pipe thermostat on the supply water pipe

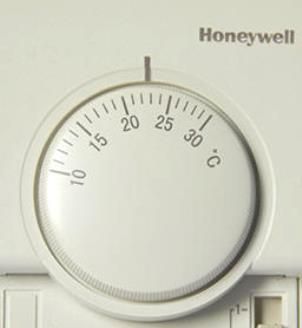

of the fan-coil Set point range : 10 to 30 Degree C. By means of a large set point dial. Supply voltage : 230 V, 50...60 Hz. Thermostat switch : S.P.D.T. Performance : Typical differential 1K (heating & cooling) at 20 Degree C at 50% load with anticipator connected. Electrical ratings : 4(2) A, 230 V. Typical loads are fans, zone valves and relays
